Visible quality – superior technology

Systems and components for power factor correction at electrical network voltages of 0.23 - 10 kV
Examples and short overview



SYSTEM ELECTRIC: Automatic power factor correction system, ready for installation.

Larger View

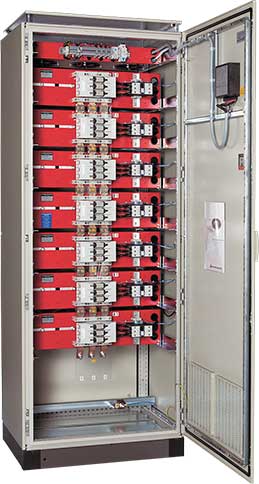

Automatic power factor correction system, ready for installation:  7 x 50 = 350 kvar, 7% detuned, 400 V, 50 Hz, system width 800 mm.





Larger View
Larger View – cabinet open

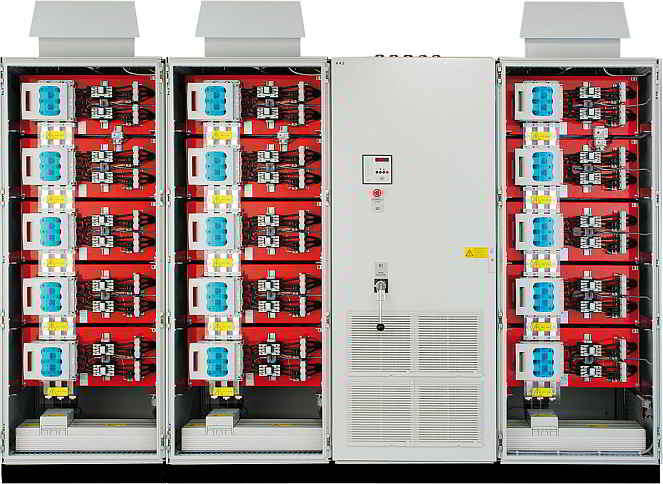

Automatic power factor correction system, ready for installation:
Filter circuit device, controllable in 15 steps of 100 or 30 steps of 50 kVAr = 1500 kVAr, 5% tuned, 690 V, 60 Hz, with 2500 A power supply panel.



SYSTEM ELECTRIC: Capacitor switching module


Larger View

Capacitor switching module:
1 x 50 kvar, 7% detuned, 400 V, 50 Hz, system width 800 mm, flat module, as used in the system above.

SYSTEM ELECTRIC: Capacitor switching module 2

Larger View

Capacitor switching module:
2 x 50 = 100 kvar, 5% tuned, overload-safe, 690 V, 50 Hz, system width 800 mm, as used in the system above.


SYSTEM ELECTRIC: Capacitor switching module 3

Larger View

Capacitor switching module: 1 x 50 kvar, 14% detuned, dynamically controlled, system width 800 mm, flat module.


SYSTEM ELECTRIC: Capacitor switching module 4

Larger View

Capacitor switching module: 2 x 50 kvar, 5.67% detuned, 525 V, 50 Hz, system width 800 mm.


SYSTEM ELECTRIC: Capacitor switching module 5

Larger View

Capacitor switching module: 3 x 25 kvar, 7% detuned, 400 V, 50 Hz, single-phase dynamically switching against N, system width 800 mm.




SYSTEM ELECTRIC: Automatic power factor correction system




Larger View

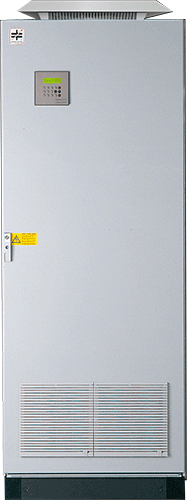

Automatic power factor correction systems, ready for installation:
100 - 400 kVAr, 230 - 700 V, 50 / 60 Hz, system width 600 / 800 mm.



SYSTEM ELECTRIC: Capacitor switching module 6



Larger View


Capacitor switching module:
2 x 25 kvar, 5.67% detuned, 525 V, 50 Hz, system width 600 mm.





SYSTEM ELECTRIC: Capacitor switching module 7



Larger View


Capacitor switching module:
2 x 25 kvar, 5.67% detuned, 525 V, 50 Hz, dynamically switching, system width 600 mm.




SYSTEM ELECTRIC: Automatic power factor correction system


Larger View


Automatic power factor correction systems in compact design:
IP20 or IP00, 6 x 12.5 kVAr, 7% detuned, 400 V, 50 Hz, system width 600 mm, 13 - 100 kVAr, 230 - 400 V, 50/60 Hz.

System accessories

SYSTEM ELECTRIC: Ventilation systems and Ventilation grilles


Larger View

Ventilation systems and Ventilation grilles for all designs and power ratings.

SYSTEM ELECTRIC: System busbars, cable support rails

Larger View

System busbars, cable support rails, etc., for all control cabinet systems.

SYSTEM ELECTRIC: Transformers

Larger View

Current transformer, summation current transformer, etc.

SYSTEM ELECTRIC: Connecting assemblies

Larger View

Busbar connectors and connecting assemblies.


SYSTEM ELECTRIC: Control modules


Larger View


Control modules with control fuse and temperature monitoring for all control cabinets.


SYSTEM ELECTRIC: Reactive power controller, CONDENSOMATIC CR2020

Larger View

CONDENSOMATIC CR2020
Self-adjusting, self-explaining, keyword-guided reactive power controller with innovative control, switching and safety concept.




SYSTEM ELECTRIC: Fuse switch disconnector





Fuse switch disconnector, NH fuse bases and fuses, disconnector.


SYSTEM ELECTRIC: Capacitor contactor


Larger View

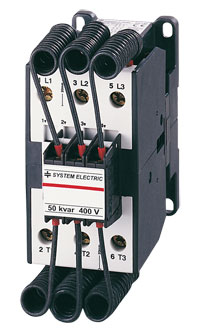

Capacitor contactor
with inrush current limiter,
12,5 - 75 kVAr,
230 - 700 V.


SYSTEM ELECTRIC: CONDENSOTRONIC


Larger View


CONDENSOTRONIC
Thyristor switching modules for high switching frequencies, compact, easy to connect, low-impact.


SYSTEM ELECTRIC: Reactors


Larger View


Detuned reactors, tuned reactors, special reactors, compact,
installation-friendly, Cu/Al, low-loss.


SYSTEM ELECTRIC: Power capacitors


Larger View

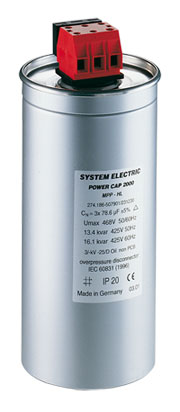

LV power capacitors,
environmentally friendly, low loss, self-healing, with long-term guarantee.


Capacitors and capacitor banks 230 - 12,000 V

Capacitor switching modules and automatic power factor correction systems, ready for installation, for medium voltages 1 - 12 kV

SYSTEM ELECTRIC: Capacitors in dry technology

Larger View

Self-healing and environmentally friendly capacitors in dry technology for low and medium voltages up to 400 kVAr, 230 - 12,000 V, with overpressure protection.



SYSTEM ELECTRIC: Capacitor banks, filter circuit reactors, current limiting reactors, high-voltage fuses, vacuum contactors



Capacitor banks, filter circuit reactors, current limiting reactors, high-voltage fuses, vacuum contactors, capacitor switching modules 6 - 14% detuned or with current limiting reactors, automatic power factor correction systems 6 - 14% detuned.
The devices and systems are available for rated Voltages up to 10 kV and offer a high safety standard through the use of self-healing, environmentally friendly capacitors in dry technology and type-tested, arcing-resistant (16 kA) cabinet systems.

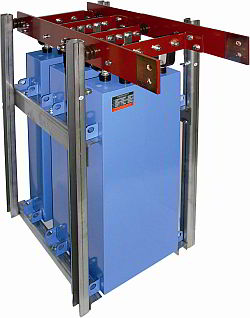

Heavy-duty arc furnace capacitor for special applications

Larger View

Self-healing and environmentally friendly capacitors in dry technology for special applications, heavy-duty arc furnace capacitor, 700 kVAr, 600 V, 50 Hz.


Active filter


under construction
